DG4053AEN-T1-E4 Vishay Siliconix Distributor
| Manufacturer Part Number | DG4053AEN-T1-E4 |
|---|---|
| Manufacturer / Brand | Vishay Siliconix |
| Available Quantity | 112660 Pieces |
| Unit Price | Quote by Email ([email protected]) |
| Brife Description | IC MUX TRIPLE 2CHAN 16-MINIQFN |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Delivery Time | 1-2 Days |
| Date Code (D/C) | New |
| Datasheet Download | DG4053AEN-T1-E4.pdf |
Please fill the below inquiry form, we will reply you the quotation for DG4053AEN-T1-E4 within 24 hours.
- Part Number
- DG4053AEN-T1-E4
- Production Status (Lifecycle)
- Contact us
- Manufacturer Lead time
- 6-8 weeks
- Condition
- New & Unused, Original Sealed
- Shipping way
- DHL / FEDEX / UPS / TNT / EMS / Normal Post
- Part Status
- Obsolete
- Switch Circuit
- SPDT
- Multiplexer/Demultiplexer Circuit
- 2:1
- Number of Circuits
- 3
- On-State Resistance (Max)
- 100 Ohm
- Channel-to-Channel Matching (ΔRon)
- 3 Ohm
- Voltage - Supply, Single (V+)
- 2.7 V ~ 12 V
- Voltage - Supply, Dual (V±)
- ±2.5 V ~ 5 V
- Switch Time (Ton, Toff) (Max)
- 108ns, 92ns
- -3db Bandwidth
- 730MHz
- Charge Injection
- 0.25pC
- Channel Capacitance (CS(off), CD(off))
- 3pF, 4pF
- Current - Leakage (IS(off)) (Max)
- 1nA
- Crosstalk
- -67dB @ 10MHz
- Operating Temperature
- -40°C ~ 125°C (TA)

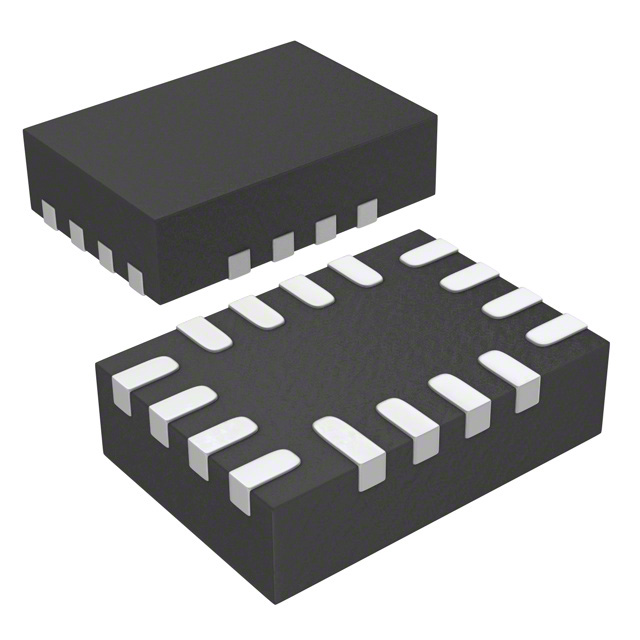

- Package / Case
- 16-WFQFN
- Supplier Device Package
- 16-miniQFN (1.8x2.6)
- Weight
- Contact us
- Application
- Email for details
- Replacement Part
- DG4053AEN-T1-E4
